The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.
Illuminated Push Button Switches R2995

•  Rating：12mA 24VDC
•  Contact Resistance：50mΩ Max.(Initial)
•  Insulation Resistance：100MΩ min(at 500VDC)
•  Dielectric Strength：AC 250V 50/60Hz FOR 1 min
•  Operating Force：170±100gf(Momentary)
•  Electric Life：1,000,000 cycles Min
•  Ambient Temperature：-10℃ ~ +60℃
•  Total Travel：2.5mm±0.5mm

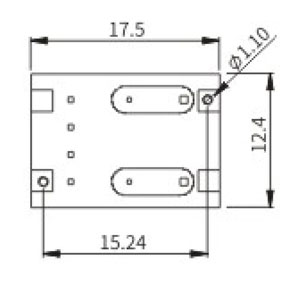

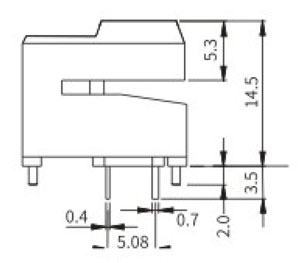

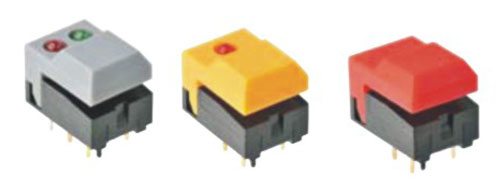

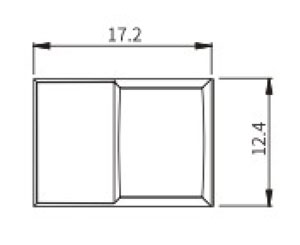

   Illumina Push Button Switches R2995 Figure  Illumina Push Button Switches R2995 Structure Diagram     Switch R2995 Structure Diagram      R2995 Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Ambient Temperature Total Travel Download
R2995-O 12mA 24VDC 50mΩ Max.(Initial) 100MΩ min(at 500VDC) AC 250V 50/60Hz FOR 1 min 170±100gf(Momentary) 1,000,000 cycles Min -10℃ ~ +60℃ 2.5mm±0.5mm NULL
R2995-1L 12mA 24VDC 50mΩ Max.(Initial) 100MΩ min(at 500VDC) AC 250V 50/60Hz FOR 1 min 170±100gf(Momentary) 1,000,000 cycles Min -10℃ ~ +60℃ 2.5mm±0.5mm NULL
R2995-2L 12mA 24VDC 50mΩ Max.(Initial) 100MΩ min(at 500VDC) AC 250V 50/60Hz FOR 1 min 170±100gf(Momentary) 1,000,000 cycles Min -10℃ ~ +60℃ 2.5mm±0.5mm NULL
